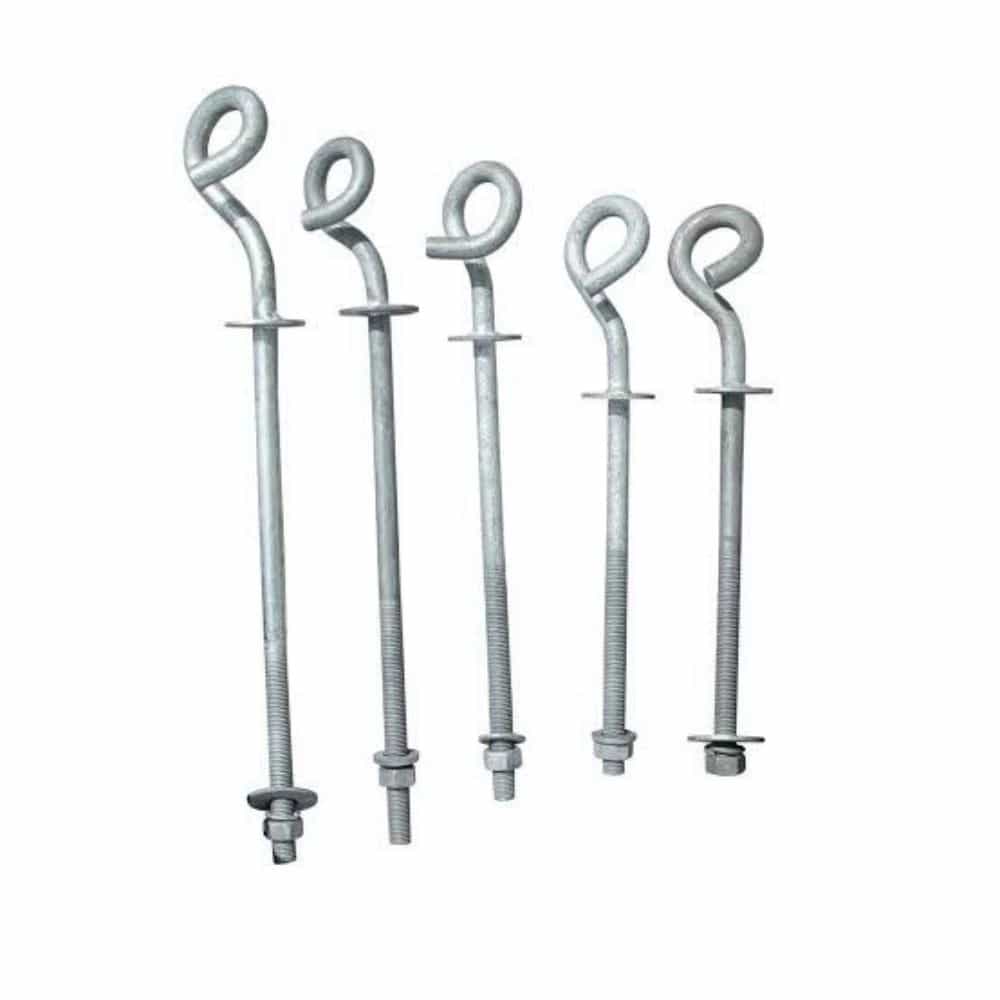

Electric pigtail screw

Supply and distribution of electric pig tail (Service Jumper)

1. What is electric pig tail (jumper service)?

Electrical pig tail in the general term of Iran's electricity industry, usually refers to short and standard wire jumpers or special connectors, whose main task is to establish a safe and secure branching from the main power lines (low or medium pressure) to peripheral equipment, switchboards or customer service.

In distribution networks, this piece is responsible for establishing a temporary or permanent connection between the main conductor and the service conductor (branch cable). This connection must:

1. Stable: resistant to vibrations and tension.

2. Resistant to environmental conditions: be completely resistant to humidity, heat and chemical pollution in the outdoor environment.

3. Low energy loss: have a very low electrical resistance to prevent heating and energy loss at the connection point.

2. Applications and types of pig tail in the field of electricity supply

According to the field of activity of Kelat Elektr in providing network fittings and switchboard equipment, our focus is on two main types:

A) Pigtail in the distribution network (Jumper)

In this case, the pigtail is usually a flexible cable or conductor with two standard terminal ends used to provide branching of overhead lines.

* Application: branching connection from self-supporting cables or bare conductors to the input of the meter or common distribution board.

* Advantage: high flexibility, quick installation by contractors, and complete compliance with Tawanir company standards (in terms of conductor diameter and insulation quality).

B) Pig tail in electrical panel connections (Split-Bolt Connectors)

Sometimes the term "pigtail" is used for branching connectors such as split-bolt connectors, which are used inside electrical panels or distribution boxes to join two conductors together or to branch off a thicker conductor.

* Application: connecting the busbar to the cable or branching from the main cable to relays and fuses.

* Advantage: creating a strong and secure mechanical connection, and the ability to open and close when repairs are needed.

3. Technical and qualitative characteristics of electrolytic pig tails

Providing a standard pigtail is very important because the junction point is the most vulnerable part of a network or switchboard.

4. The benefits of providing pig tail from Kalat Power Company

✅ Safe and permanent supply: guaranteeing inventory for large projects and electrical goods stores across the country.

✅ Confirmed quality: providing products with standard brass, copper and aluminum materials that increase the reliability of the network.

✅ Competitive wholesale price: elimination of middlemen, direct shipping from the supplier to the customer.

✅ Variety of sizes: provision of all common sizes for low and medium pressure cables.

Klat Power's commitment: "The security and stability of your network is guaranteed by our standard hardware."
